G6 Matter Gateway manual and data specs

You can find the manual and data specs of the G6 Matter Gateway below:

Product Overview:

The G6 Matter Gateway for Smart Locks not only
supports essential gateway features such as remote
unlocking, remote smart lock management, and remote
time synchronization but is also deeply optimized for
the Matter protocol. Leveraging Matter over Wi-Fi
technology, this gateway seamlessly integrates smart
locks into the Matter ecosystem, enabling cross-brand
device interoperability and multi-platform scenario
controls. This significantly enriches smart lock
application scenarios.

Adding G6 Gateway via TTLock APP:
1. Connect device to power source.

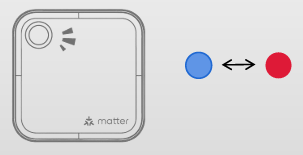

2. The indicator light flashes red and blue
alternately, indicating it's ready to be added via
the TTLock APP.

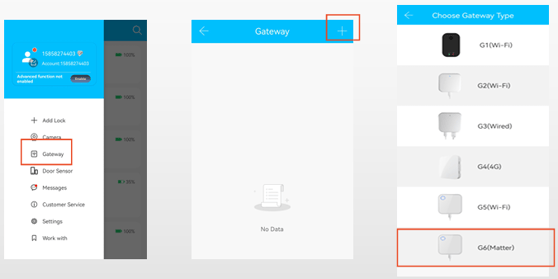

3. In the gateway devices section, tap "+" to add a new device, then
select "G6 (Matter)"

Unplug the power cable, then reconnect it to re-enter TTLock pairing
mode.

3. Tap the "+" icon next to the detected gateway device to enter
network setup. Select your desired Wi-Fi network, then enter
credentials and set a gateway name.

The G6 gateway only supports 2.4 GHz Wi-Fi networks.
If network credentials aren't entered before time-out during
binding, it will retain the previously configured wireless network
settings.

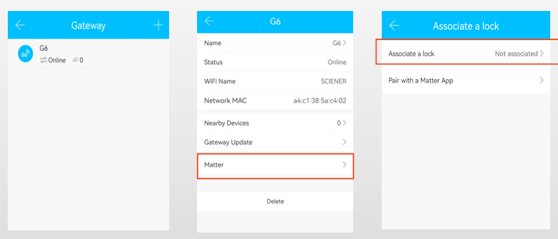

4. Select the added gateway to enter its details page, choose Matter, then
Associate Smart Lock.

Note: The system will automatically search for nearby locks bound to your APP account; only one lock can be associated at a time.

The associated smart locks must have remote unlocking enabled
to be controlled via the gateway.

User Manual: Adding G6 Gateway via Apple Home APP:

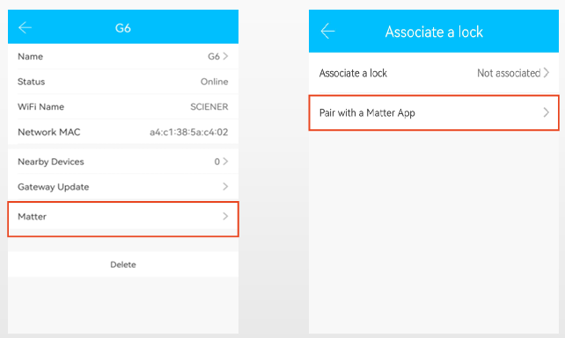

1. Navigate to the gateway details page, tap Matter, then
select Associate Third-Party APP.

2. Tap Start to activate Matter pairing mode
(indicator lights solid blue).

Ensure the Home app has added a HomePod before adding the G6 Matter Gateway. For HomePod setup, refer to Apple's official
documentation: https://support.apple.com/guide/homepod
Verify the HomePod's network matches the gateway's configured network. If networks differ:① Reconfigure the gateway network, or ②
Reconfigure the HomePod's network.

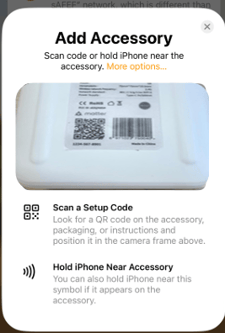

3. Open the Home app, tap "+", then select
"Add Accessory".

4. Position the camera's viewfinder over the
QR code on the device label to add.

If the QR code on the label is damaged or
unreadable, use the manual pairing code
method detailed in Appendix [A] to add
the device.

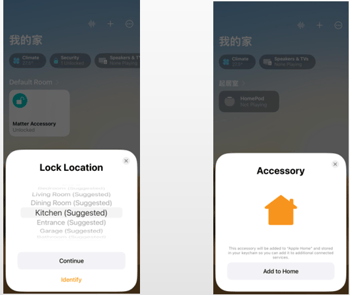

5. Follow the in-app prompts to select the door lock's
location, name the lock, then complete setup.

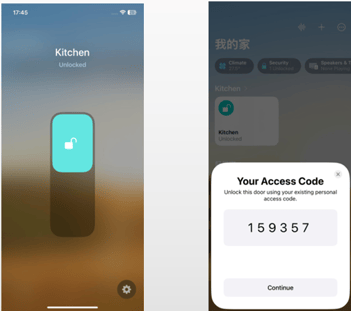

6. After completing setup, tap the smart lock device to
test unlocking or configure advanced settings.

You can unlock the smart lock either via the Home app or by entering the access code generated during setup directly on the lock's keypad.

Appendix A: Adding G6 Gateway via Digital Pairing Code in Apple Home

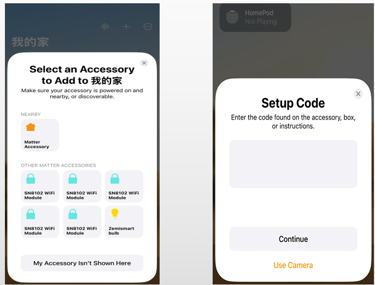

1. In the Home app's Add Accessory QR
scanning screen, tap More Options.

2. Select "My Accessory Isn't Shown", enter the 11-digit Matter
setup code from the label, tap Continue, then complete device
setup.

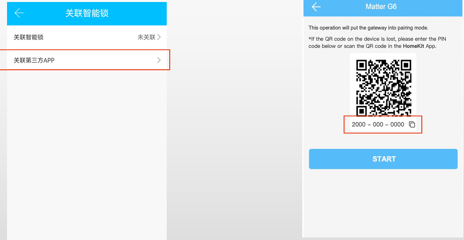

* 3. If both the QR code and setup code become unreadable, navigate to Matter >
Associate Third-Party APP in the gateway's detail page via TTLock APP to retrieve backup QR and emergency setup codes.
