Simpled TP-SP Video Intercom Doorbell manual and data specs

You can find the manual and data specs of the TP Video Intercom Doorbell below:

Product Overview:

The DB2 Smart Video Intercom Doorbell is equipped
with a 200W HD camera and 6 infrared fill lights,
supporting night vision HD monitoring and motion
detection alerts, along with two-way audio
communication. Built-in with a high-performance
WiFi/Bluetooth combo chip, it enables real-time
remote video viewing and features Bluetooth gateway
functionality (note: requires future firmware updates),
allowing integration with smart lock devices to
establish an intelligent security ecosystem. For
extended endurance, it includes two high-capacity
lithium batteries and supports up to 128GB TF card
storage, ensuring 24/7 home safety protection.



Model                                                    DB2
Material                                                Plastic
Dimensions                                         135mm x 48mm x 32mm
Power Supply                                      2 × 18650 Lithium Batteries

Charging port                                     Type-C USB
Resolution                                           1920*1080@15fps;640*360@15fps;
Local Storage                                      Supports up to 128GB TF card
Operating Temperature                  -10℃~45℃

What's included?

Screenshot (179)Doorbell Main Unit (with mounting bracket) ×1




Screenshot (182)Adhesive strip ×1




Screenshot (181)18650 Li-ion X 2 (Optional)




Screenshot (180)USB Chime ×1





Screenshot (183)Type-C Cable ×1




Screenshot (177)User Manual ×1



Screenshot (178)Screw Accessories Kit ×1

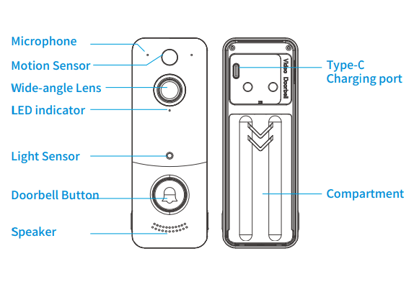

Guide to Lights, Buttons & Sounds:

Screenshot (185)
