Advanced Features, Durable Design, and Effortless Convenience for Modern Living
Key Features
- Multiple Unlocking Methods: Bluetooth, fingerprint, password, proxy fob, emergency key, Alexa/Google Home (with Wi-Fi bridge).
- Auto-Lock: Automatically locks the door for added security.
- Passage Mode: Keeps the door unlocked for easy access.
- Reversible Handles: Can be installed on either side.
- Weatherproof: Only the outside panel is weatherproof. The internal panel must be installed in a covered, dry area.
Specifications
- Model: SF-SPS
- Materials: Stainless Steel 304 (Handle), Aluminum Alloy (Panel)
- Weight: 2.5 KG
- Battery: 6V / 4 x AA Alkaline (Lithium recommended)
- Door Thickness: 35-65mm
- Data Capacity: Fingerprint: 200, Passcode: 150, Fob: 200, eKeys: Unlimited
- Working Temp: -10°C to 55°C
Included
- 2x Proxy Fobs
- 2x Emergency Keys
- 1x Phone Tag Sticker
- 4x Lithium Batteries
- 1x Spindle (60mm)
- 1x Split Pin
- 1x Suction Cup
- 2x Sliding Screws
- 1x M5x25mm Screw
- 1x M5x30mm Screw
- 1x M5x40mm Screw
- 1x M5x50mm Screw
- 1x M5x60mm Screw
- 1x M5x70mm Screw
- 1x Cable Extender
- 4x Mortise Screws (for Wooden Door)
- 4x Mortise Screws (for Aluminum Door)
- 1x Spindle (80mm)
- 2x Rubber Gaskets
Installation

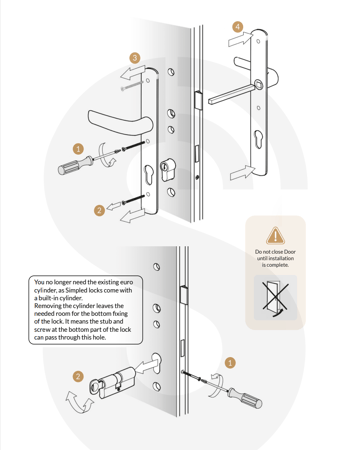

Remove Old Handle

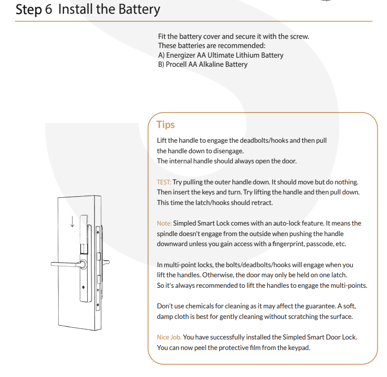

Test: Lift the handle to engage bolts, and pull down to disengage.

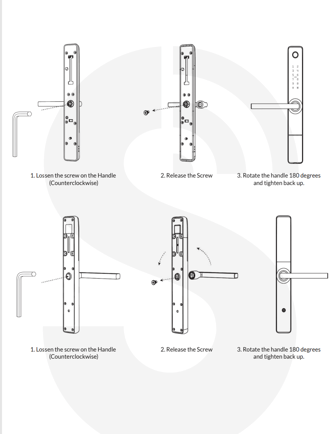

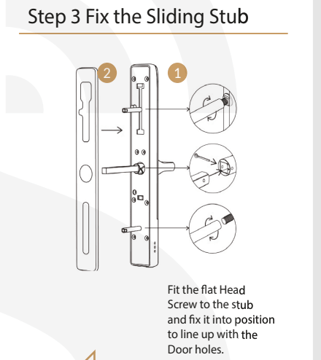

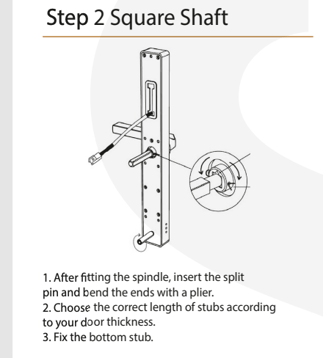

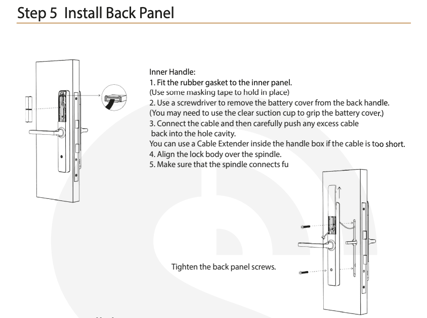

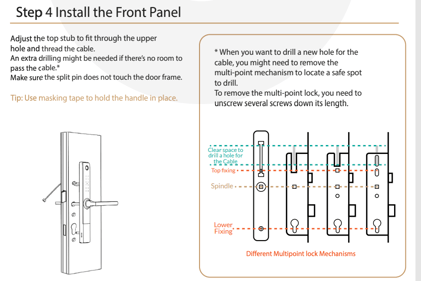

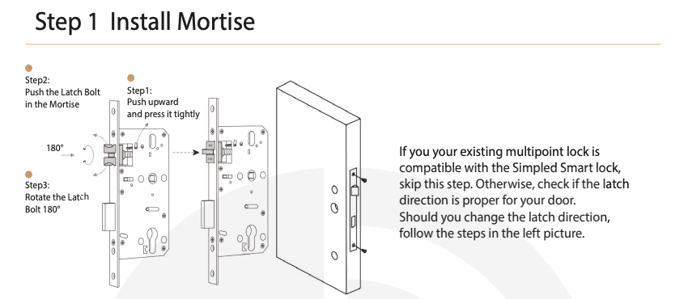

See below for diagrams, If you require further guidance click here to watch our step-by-step YouTube tutorial
Why Choose Simpled SF?
- Keyless entry with Bluetooth, fingerprint, and more.
- Auto-lock and passage mode for convenience.
- Compatible with most multipoint locks.
Upgrade to Simpled SF Series Smart Lock for a modern, secure entry solution. For support, contact support@simpled.tech.
