      Simpled EF-SP Smart Lock

      Modern Security, Simplified Access

      Unlocking Methods

      • Outside: Smartphone, Apple Watch, Fingerprint, Passcode, Proxy Fob, NFC, Emergency Key
      • Inside: Smartphone, Remote Controller, Alexa/Google Home (with gateway)

      What's Included?

      • 2x Proxy Fobs
      • 1x Phone Tag (Sticker)
      • 2x Emergency Keys
      • 4x Alkaline Batteries (1.5V)
      • 1x 60mm Spindle
      • 1x Split Pin
      • 2x Sliding Screws
      • 2x M5x30mm Screws
      • 2x M5x40mm Screws
      • 4x Mortice Screws (for Wooden Door)
      • 4x Mortice Screws (for Aluminum Door)
      • 1x 80mm Spindle
      • 2x Screw Stubs (30x8)
      • 2x Screw Stubs (35x8)
      • 2x Rubber Gaskets

      Specifications

      • Model: EF-SP
      • Material: SS304 Handle and Panel
      • Weight: 2 KG
      • Colour: Silver, Black
      • Battery: 6V/4 x AA
      • Data Capacity:
        • 100 Fingerprints
        • 150 Passcodes
        • 200 RFID Cards
        • Unlimited eKeys
      • Working Temperature: -10°C to 55°C
      • Weatherproof: Yes (for outdoor use)

      Installation Instructions

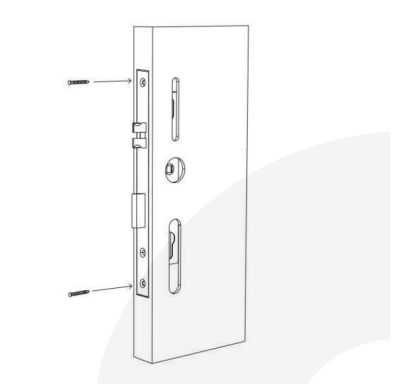

      Step 1: Install Mortice

      Insert Mortice into the door, ensuring it is aligned correctly.

      Align the lock mechanism with the door’s pre-drilled holes.

      Screenshot 2024-11-22 at 13.48.53

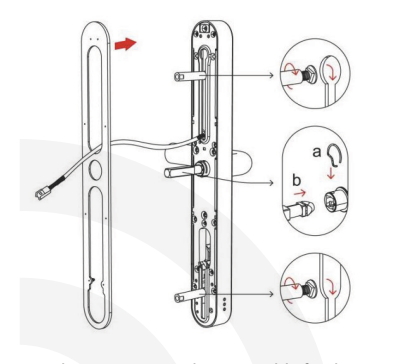

      Step 2: Install Sliding Screw Casing and Square Shaft

      Insert the screw into the hole and secure it.
      Ensure the spindle receptor arrow is pointing towards the handle. If the handle is on the left, the arrow should also face the left.

      Screenshot 2024-11-22 at 13.49.01

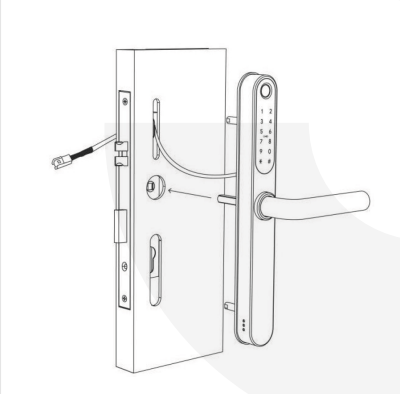

      Step 3: Install Front Panel

      1. Align the front panel with the door holes and install.
      2. Install waterproof gaskets for additional protection.
      3. Install the square shaft and secure it with a U-Clip.



      Screenshot 2024-11-22 at 13.51.50

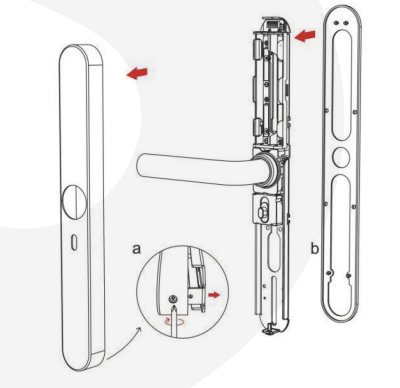

      Step 4: Install the Back Panel

      1. Install another waterproof pad on the rear panel to ensure sealing.

      Screenshot 2024-11-22 at 13.49.12

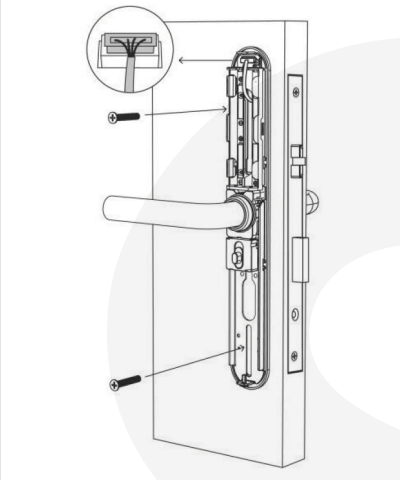

      Step 5: Connect the Front and Back Panels Wires

      1. Connect the power cord from the front panel to the back panel.

      Screenshot 2024-11-22 at 13.54.18

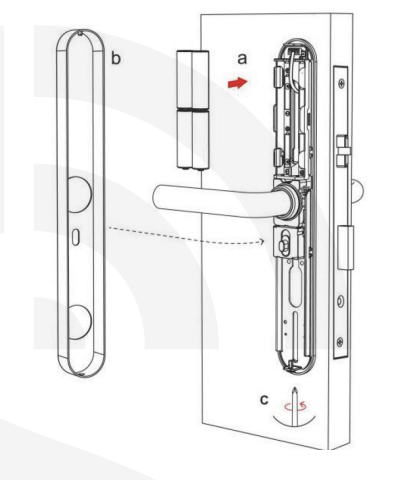

      Step 6: Install the Battery

      1. Insert 4 AA batteries into the battery compartment.
      2. Attach the battery cover to complete the setup.

      Screenshot 2024-11-22 at 13.54.42

      Testing and Final Adjustments

      Test Handle:

      • Lift the handle to engage the bolts/hooks.
      • Pull the handle down to disengage them.

      External Handle Test:

      • Pull the outer handle down; it should move but not engage.
      • Insert the keys and turn them. When lifting the handle, the bolts/hooks should retract.

      Final Notes

      • Auto-Lock Feature: The spindle will not engage from the outside unless verified (fingerprint, passcode, etc.).
      • Multi-Point Locks: Always lift the handles to ensure the multi-point bolts/hooks engage fully.
      • Cleaning: Use a soft, damp cloth for cleaning. Avoid chemicals to preserve the finish.

      For Further Information don't hesitate to contact us here!
