QA-SP Manual and data specs

You can find the manual and data specs of the QA-SP lock below:

Product parameters:

Size:                                                           132X43X25mm

Bluetooth:                                               BLE 5.0

Power supply:                                        4 AAA batteries

Standby current:                                   <30 μ A

Working current:                                 <200mA

Working voltage (range):                    4.5V~6.5V

Low voltage alarm voltage:              <4.8V ± 0.1V

Fingerprint quantity:                          100 PCS

Networking method:                          Bluetooth

Status indicator:                                   RGB indicator light+keyboard

                                                                  blue backlight light

Voice prompt:                                       Buzzer

Anti pry function:                                 Supports

OTA upgrade:                                       Support

Working temperature:                      -20~70 ℃

Waterproof rating:                              Ip65

Supported mobile operating systems:  ≥Android 4.3/iOS 7.0 and above

Maximum number of supporting bonding locks:  3 pieces



Packaging accessories:



                             Wireless keypad ×1



                              Fixed plate X1



                   User Manual ×1



         Double-sided tape ×1



         Wrench X1            ST4 screw X2

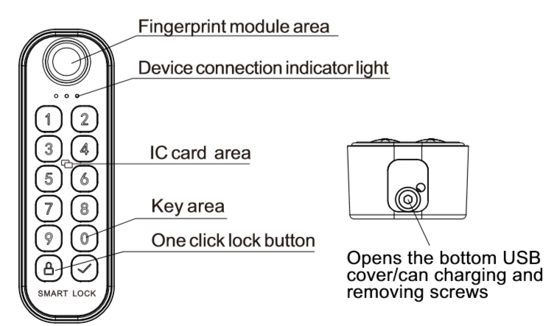

Product schematic diagram:

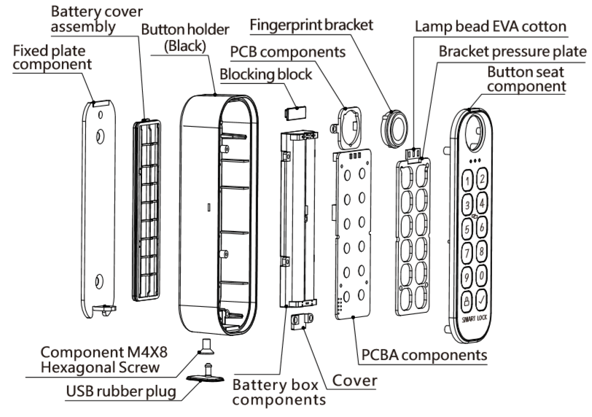

Product explosion diagram:

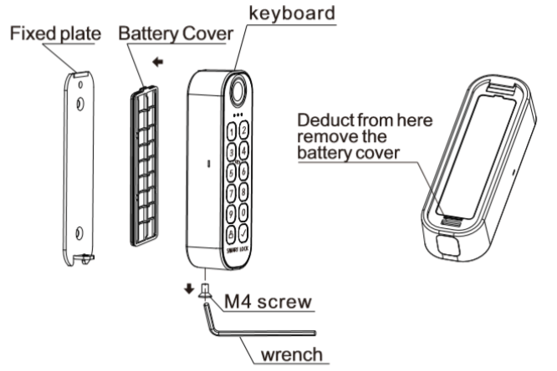

Remove the fixed plate and battery cover:

Product installation operation:

Method 1:

Install the battery, attach 3M adhesive to the keyboard, and                                                    then place the keyboard in the appropriate position on the                                                    door.

Method 2:

    1) Fix the fixed plate in the appropriate position on the door                                                     with ST4 self tapping screws.



2) Install the battery and cover the battery cover.



    3) First, insert the keyboard into the buckle at the upper end                                                of the fixed plate, then push it into the slot at the lower end                                                    of the fixed plate, and push the keyboard into place.



       4) Use a wrench to tighten the M4 screw from the bottom                                                      onto the fixing plate.



Add/Remove Wireless Keyboard for Locks:

1.The keyboard enters the configuration mode

①When the keypad is not added by any lock, after installing the battery, press any button to enter the configuration mode;

②When the keypad has been added by any lock and has not reached the upper limit of the lock addition (3 locks), you need to enter "* 529 # plus * * * * * * *", and "* * * *" * * * * " is the administrator password of any bound smart lock, so that the wireless keypad can enter the configuration mode.



2.Keyboard bound with smart lock
