GF-SP Manual and data specs

You can find the manual and data specs of the smart lock for glass doors (GF-SP) below

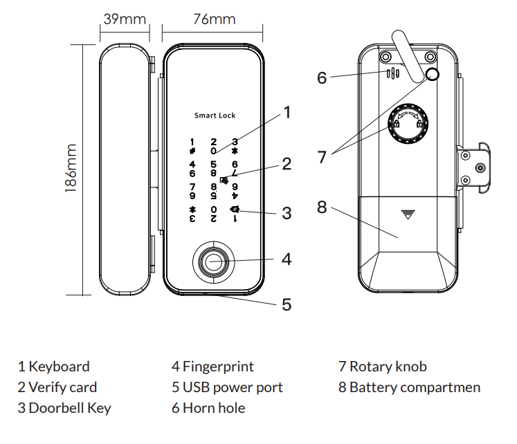

Product Overview

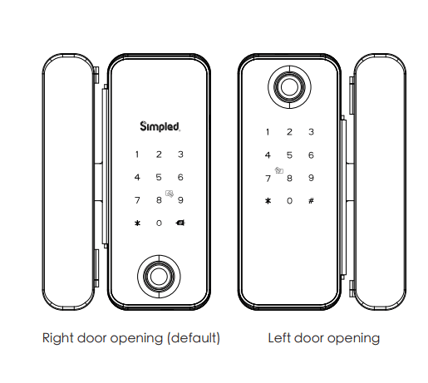

In the initialisation mode, enter 123456#56#1# on the lock to switch the
keyboard to the top and fingerprint to the bottom (default state);
Enter 123456#56#2# to switch the keyboard to the bottom
and fingerprint to the top.



What's included?:

1x Phone Tag (Sticker)

2x Proxy Fobs

2x Emergency Key

1x Lithium Battery

8x 4x 8mm Screws

1x Paper Jam

1x Mounting plate

Specification:



Installation:

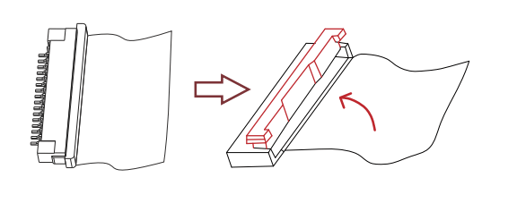

Assembling and dissembling the cable:

1. When removing the cable, gently lift the lock with your fingertips, and
 then pull out the cable.
2. When replacing the cable, insert the cable first, and then press the lock
 down gently.



Mounting the lock on a framed glass door:

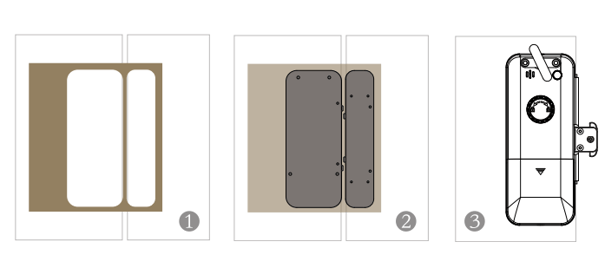

1. Clean the glass, and stick a horizontally positioned paper jam inside the door

2. Remove the adhesive paper from the mounting plate and place it according to
the position of the paper jam. The buckle feet should buckle the side of the
glass door
3. Push the main lock in from the side of the glass, and remove the battery cover.

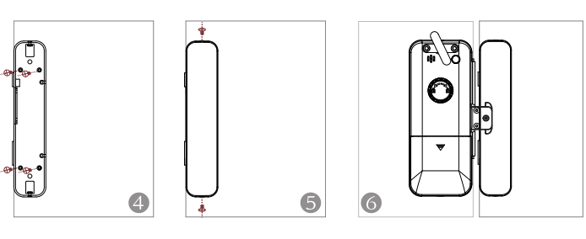

4. Remove the rear shell (upper and lower screws) from the auxiliary lock,
push it in from the side of the glass, and screw on the fixing screws.
5. Use the manual knob to lock, confirm that the main and auxiliary locks
are aligned, then reinstall the back shell, and tighten at the top and the bottom.



Note:

1. Be sure to use positioning paper to align the main and auxiliary locks, and the door gap should not be less than 4mm
2. The thickness of the glass is 8-12 mm

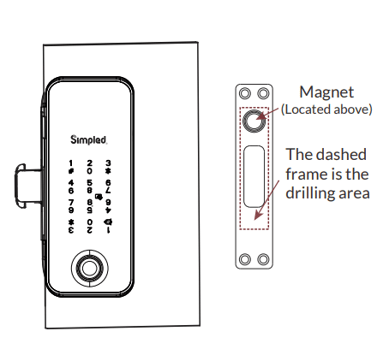

Mounting the lock on a single-glass door:

1. Install the main lock, close the door and mark the position of the bolt.
2. Drill holes in the wall and install the side strips.

Note that the orientation of the magnet should be consistent with the main lock knob, the illustrations are all on the top

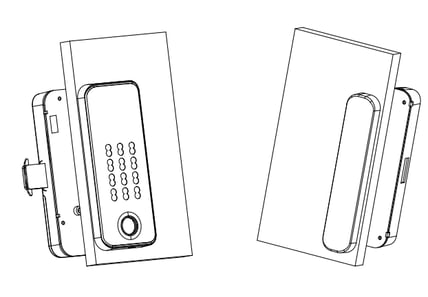

Mounting the lock on a wooden door:

1. Install the main lock and drill holes in the wooden door or the door frame.
2. After the studs and cables of the front panel are passed through the wooden door,
fix the front panel with screws on the metal plate behind the door.
3. Connect the cable to the rear shell, and fix the rear shell with screws on both
sides to complete the main lock installation.
4. Install the auxiliary lock, fix the metal plate with self-tapping screws or rivets,
and then install the back cover (as shown in the right picture above).









Setting up the Smart App (TTLOCK):

1. Download the “TTlock App” from the App Store or Google Play by either
- Scanning the QR code
- Searching the “TTLock” app
2. Sign up for a TTlock account, and add the smart lock to the device list



3. Activate the lock’s Bluetooth by touching the Lock’s keypad
4. Tap on “+ Add Lock” and select your lock type. Press on “All Locks”
if you are not sure.
5. In the “Nearby Locks” list, select the appeared lock. Please make sure
you are near the lock in the Bluetooth range.
6. Rename the Lock “Sweet Home, Spain Villa, London Office, …”

Bluetooth Unlock:

Try to open the lock by tapping on the “Lock Icon”. Please ensure there is
no problem with Bluetooth communication, and the phone is within the
5-meter range of the Simpled Slim Smart Lock.



Add Fingerprints:

For adding a new fingerprint,
1. Select Fingerprint from the lock screen in the app
2. Tap on the three dots
3. Select Add Fingerprint
4. Choose a name for later reference “ It helps you to recognise the
fingerprint in the unlocking reports”.
5. Choose whether you want to create limited-time or permanent access.
6. Then start and press your fingerprint 4 times on the fingerprint sensor
7. You should see it is done successfully.
8. Test the fingerprint.



Add Passcodes:

You can create different passcodes types to open the Simpled slim lock:
permanent, time-limited, OTP(one-time passcode), cycle or custom.
You can easily share the passcode with other users via SMS, Email,
WhatsApp.
You can create, limit, share and delete a passcode without a bridge using
the app when you are near the lock.
But for example, If you want to eliminate a passcode remotely, you need
a Bridge. You can learn more about Bridge features in its section.
Gain access with Passcodes:
1. Touch the keypad with your palm or back of your fingers to wake up
the lock.
2. Enter the generated passcode. (Before setting new passcodes, the
default code is 123456#)
3. Press #.



Passcode Management:

Click on “Passcodes”. In this section, the Admin user can
1. Change, delete or reset passcodes.
2. Review the unlock records of passcodes.



Create and Send e-Keys:

By selecting the “Send eKey” as shown in the figure, you can create and
share an electronic key with your friends, family, maid, dog walker or your
AirBnB guests. For using the eKey, they need to download and sign up
for a new account. This will also help you nd out about the time they
opened the lock. E-Keys are also available in different types: Permanent,
Time-Limited, One-time and recurring.
You can authorise a user as Admin in the Authorised Admin section.

e-Key Management:

Click on eKeys. In this section, the Admin user can
1. reset or delete eKeys.
2. review the access records.

















Create Admin:

With this feature, you can assign a
new timed/ permanent admin to
have the same level of access to
the lock.
For example, your receptionist or
even your guest will be able to add
new users and even register their
own fingerprint on the smart lock,
up to the time their users are valid.







Program Card, Proximity Fobs, Phone Tag Stickers:

Before a proxy fob or sticker can open the lock, it is required to be
programmed first. Fobs/Stickers can also be Permanent or Limited by time.

Unlocking Records:

Tap on “records”. In this part, you can review all the unlock records.

Activate Passage Mode:

1. Choose the lock
2. Tap on “Settings”
3. Select “Passage Mode”
4. Turn on this mode and
press Save
Note: To activate the passage mode, you need to unlock it
once with the app!
When passage mode is activated, you can long-press # to force-lock the Simpled lock! It’s the same when the auto-lock feature is off; you can long-press # to lock the door.

Import data from an old Simpled lock:

To transfer data from an old Simpled lock to a new one you can follow these steps:
1. Choose the new lock on the app.
2. Tap on "Settings"
3. Select "Import from another lock"
4. Choose your old lock from the list.





Turning off/on the lock sound:

1. Open the app.
2. Tap on the lock.
3. Choose “Settings”.
4. Disable/Enable the Lock sound.







Transfer lock to a new owner:

1. Open the app
2. Tap on the more option icon on the top Left
3. Select “Settings”
4. Tap on “Transfer Lock(s)”
5. Select the lock(s) and press Next
6. Enter the new owner Account, and press Next.
Notice: The selected lock(s) will be permanently transferred.



WiFi Bridge Pairing:

and WiFi. With the Gateway, you can
• open your lock from anywhere
• remotely read the lock operation records, including, fingerprint, passcodes
• calibrate the lock clock remotely
• remotely delete and modify passcodes
• use the Simpled lock with your Alexa
• use the Simpled lock with your Google home

Light Status:

Pair the Gateway with APP:





Note: You can register an account by your email address or mobile number that is available in 200 countries around the world.
