DWF-SP manual and data specs

You can find the manual and data specs of the DWF-SP Smart Lock below:

Product Overview:

What's included:

Front Panel *1

Back Panel *1



Proxy Fob *2

Phone Sticker *1

Mechanical Key *2

Waterproof Rubber Plate *2



29.5mm Square Shaft *1

32.5 mm Square Shaft *1

36 mm Square Shaft *1

Mortise Screws: KM5*10mm
(For Aluminium Door) *4

Mortise Screws: KA4*20mm
(For Wooden Door) *4

Sliding Screw:M5*6.5mm *2

L -shaped Hexagon Wrench *1

Screw Stubs: M5*18mm *2

KM3*6mm Screw *4

KM5*16mm Screw *2

KM5*20mm Screw *2

KM5*25mm Screw *2

1.3. Specifications

Suitable for Models	S06-TB	Doors Applicable	Aluminum door Wooden door
Materials	Aluminum alloy	Working Voltage	3V/1x CR123 Battery
Lock Weight	3KG	Door Thickness to Fit	20-30mm
Unlocking Way	Bluetooth Fingerprint(option) Password Card Mechanical key Gateway(option)	Data Capacity	Fingerprint：200 Password：150 Card：200
Color	Silver Black	Working Temperature	-10℃-55℃
Low Wattage Alarm	Less than 2.4V	Working Humidity	0-95%



 2. Initialisation

1. Open the cover plate of the back panel.
2. Long-press the reset button until the voice prompt "Please enter initialisation password".

3.     Release the reset button, and then enter "000#".



3. Installation

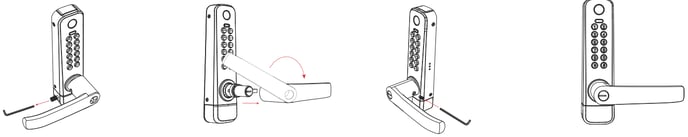

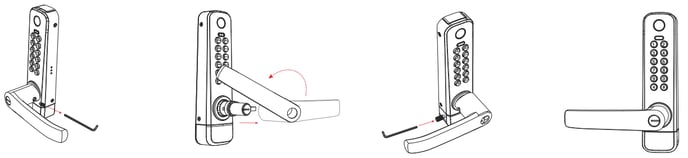

3.1. Turn the handle



Front handle



Back handle





3.2. Installation Diagram

Step 1 Install Mortice

Install the mortice into the door with screws.

Step 2 Install Batteries

1. Remove the screw of the battery cover. 2. Open the battery cover. 3. Insert the battery and the battery cover.

Step 3 Install Exterior Assembly

1. Install the waterproof rubber plate on the exterior assembly. 2. Install the square shaft into the spindle hub, keeping the arrow pointing down. 3. Install 2 screw casings. 4. Install the exterior assembly on the door.

Step 4 Install Interior Assembly

1. Remove 4 screws of the interior assembly. 2. Install 2 screws. 3. Install 4 screws of the interior assembly. 4. Complete Installation.



Setting up the Smart App (TTLOCK):

1. Download the “TTlock App” from the App Store or Google Play by either
- Scanning the QR code
- Searching the “TTLock” app
2. Sign up for a TTlock account, and add the smart lock to the device list



3. Activate the lock’s Bluetooth by touching the Lock’s keypad
4. Tap on “+ Add Lock” and select your lock type. Press on “All Locks”
if you are not sure.
5. In the “Nearby Locks” list, select the appeared lock. Please make sure
you are near the lock in the Bluetooth range.
6. Rename the Lock “Sweet Home, Spain Villa, London Office, …”

Bluetooth Unlock:

Try to open the lock by tapping on the “Lock Icon”. Please ensure there is
no problem with Bluetooth communication, and the phone is within the
5-meter range of the Simpled Slim Smart Lock.



Add Fingerprints:

For adding a new fingerprint,
1. Select Fingerprint from the lock screen in the app
2. Tap on the three dots
3. Select Add Fingerprint
4. Choose a name for later reference “ It helps you to recognise the
fingerprint in the unlocking reports”.
5. Choose whether you want to create limited-time or permanent access.
6. Then start and press your fingerprint 4 times on the fingerprint sensor
7. You should see it is done successfully.
8. Test the fingerprint.



Add Passcodes:

You can create different passcodes types to open the Simpled slim lock:
permanent, time-limited, OTP(one-time passcode), cycle or custom.
You can easily share the passcode with other users via SMS, Email,
WhatsApp.
You can create, limit, share and delete a passcode without a bridge using
the app when you are near the lock.
But for example, If you want to eliminate a passcode remotely, you need
a Bridge. You can learn more about Bridge features in its section.
Gain access with Passcodes:
1. Touch the keypad with your palm or back of your fingers to wake up
the lock.
2. Enter the generated passcode. (Before setting new passcodes, the
default code is 123456#)
3. Press #.



Passcode Management:

Click on “Passcodes”. In this section, the Admin user can
1. Change, delete or reset passcodes.
2. Review the unlock records of passcodes.



Create and Send e-Keys:

By selecting the “Send eKey” as shown in the figure, you can create and
share an electronic key with your friends, family, maid, dog walker or your
AirBnB guests. For using the eKey, they need to download and sign up
for a new account. This will also help you nd out about the time they
opened the lock. E-Keys are also available in different types: Permanent,
Time-Limited, One-time and recurring.
You can authorise a user as Admin in the Authorised Admin section.

e-Key Management:

Click on eKeys. In this section, the Admin user can
1. Reset or delete eKeys.
2. Review the access records.

















Create Admin:

With this feature, you can assign a
new timed/ permanent admin to
have the same level of access to
the lock.
For example, your receptionist or
even your guest will be able to add
new users and even register their
own fingerprint on the smart lock,
up to the time their users are valid.







Program Card, Proximity Fobs, Phone Tag Stickers:

Before a proxy fob or sticker can open the lock, it is required to be
programmed first. Fobs/Stickers can also be Permanent or Limited by time.

Unlocking Records:

Tap on “records”. In this part, you can review all the unlock records.

Activate Passage Mode:

1. Choose the lock
2. Tap on “Settings”
3. Select “Passage Mode”
4. Turn on this mode and
press Save

Import data from an old Simpled lock:

To transfer data from an old Simpled lock to a new one you can follow these steps:
1. Choose the new lock on the app.
2. Tap on "Settings"
3. Select "Import from another lock"
4. Choose your old lock from the list.





Turning off/on the lock sound:

1. Open the app.
2. Tap on the lock.
3. Choose “Settings”.
4. Disable/Enable the Lock sound.







Transfer lock to a new owner:

1. Open the app
2. Tap on the more option icon on the top Left
3. Select “Settings”
4. Tap on “Transfer Lock(s)”
5. Select the lock(s) and press Next
6. Enter the new owner Account, and press Next.



With WiFi Bridge Pairing you can:
• Open your lock from anywhere
• Remotely read the lock operation records, including, fingerprint, passcodes
• Calibrate the lock clock remotely
• Remotely delete and modify passcodes
• Use the Simpled lock with your Alexa
• Use the Simpled lock with your Google home

Light Status:

Pair the Gateway with APP:







FAQ

1. How to read operation records?	In the Records of the main interface.
2. Why can’t I unlock it after opening the passage mode?	You need to perform an unlock verification in any method, then the passage mode will take effect.
3. What is the purpose of Auto Lock?	You can set how long to lock after unlocking.
4. After installation, the touch-sensing keyboard, screen do not respond	a)      In this case, first check that the positive and negative electrodes of the battery have been installed upside down, and whether the battery has enough power b)      Remove the back panel and see if it's connected. c)      To eliminate the above situation, you need to remove the lock, check whether the wires of the lock body are squeezed, and rewire.
5. Unable to register the fingerprint	Check the fingers for dirt or wear, check the fingerprint head on the lock for dirt and oil stains, etc. Check to see if the fingerprint is working properly(Press to see if there is any response.
6. What is the reason why the smart lock consumes fast power?	a)      Large standby power consumption. b)      Short circuit.
7.  There is no response to pressing the handle on the outside of the door, and there is no unlock normally on the inside of the door, but the verification is normal, and the motor is normal.	It may be that the triangle direction on the clutch was in error; please check the correction.
8. How many times will the password be locked? How long is it locked?	Enter the wrong password more than 5 times in a row, and the keyboard is locked for 90 seconds.
